Bucket Lifting Processing Machinery

Core Advantages

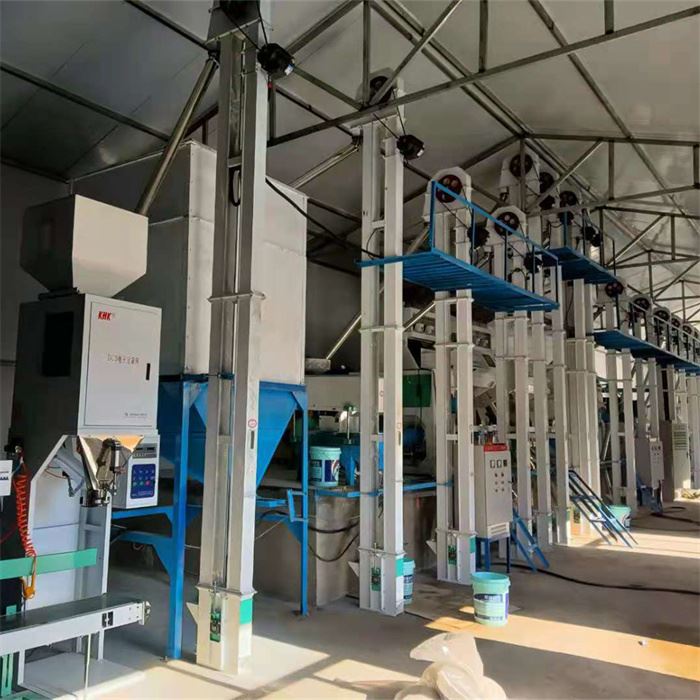

This bucket lifting processing machinery adopts vertical bucket elevator structure for stable grain transportation, with full‑automatic centralized control system. It can complete raw grain cleaning, husking, milling, polishing and finished product output in one production line, widely used in medium‑large grain processing plants and agricultural industrial parks.
1. Automatic Continuous Production: Bucket lifting design ensures stable vertical conveying, no material leakage, realizing 24‑hour non‑stop production.
2. High Integration & Space‑Saving: Compact layout of bucket elevator and processing units, reasonable three‑dimensional structure, effectively saving workshop space.
3. Wide Compatibility: Adaptable to rice, corn, wheat, sorghum and other grains, supporting diversified processing such as polished rice, corn grits and grain flour.
4. Low Breakage & High Yield: Gentle lifting and conveying mode reduces grain damage, improving finished product yield and economic benefits.
5. Intelligent Control: Centralized control cabinet for one‑key start‑stop, easy parameter adjustment, simple operation and low labor dependence.

Safety regulations for bucket type lifting processing machinery equipment



The hopper scoops up material from the storage bin below. As the conveyor belt or chain lifts it to the top, the hopper inverts after passing around the top wheel and pours the material into the receiving trough. In a belt-driven bucket elevator, the transmission belt is typically made of rubber and is installed on the lower or upper drive drum, as well as on the upper and lower reversing drums. A chain-driven bucket elevator generally uses two parallel drive chains, with a pair of drive sprockets at the top or bottom and a pair of reversing sprockets at the opposite end. Bucket elevators are typically enclosed in a casing to prevent dust from escaping.

Bucket-type lifting equipment is suitable for vertically transporting materials from a lower to a higher position. Material is fed into the hopper via a vibrating table, and the machine operates automatically and continuously to transport it upward.

1





The bucket elevator is used to vertically lift block and granular materials such as limestone, coal, gypsum, clinker, dry clay, as well as powdered materials such as raw materials, cement, and coal powder that have passed through the crusher.

matters needing attention

2







According to the speed of the hopper operation, bucket elevators can be divided into three forms: centrifugal unloading, gravity unloading, and mixed unloading.

3

Centrifugal unloading has a fast bucket speed and is suitable for conveying materials with low grinding properties such as powder, granular, and small pieces; The bucket speed of gravity unloading is slow, suitable for conveying block shaped, high specific gravity, and highly abrasive materials such as limestone and clinker.



4

The traction components of bucket elevators include ring chains, plate chains, and adhesive tapes. The structure and manufacturing of the chain are relatively simple, and the connection with the hopper is also very firm. When conveying materials with high abrasiveness, the wear of the chain is small, but its own weight is large.

5

The plate chain structure is relatively sturdy and lightweight, making it suitable for elevators with a large lifting capacity. However, the hinged joints are prone to wear. The structure of the adhesive tape is relatively simple, but it is not suitable for conveying highly abrasive materials. The temperature limit for ordinary adhesive tape materials does not exceed 60 °C. Steel rope tape can handle material temperatures up to 80 °C, while heat-resistant tape can withstand temperatures up to 120 °C. Materials conveyed by ring chains and plate chains can reach temperatures as high as 250 °C.

We are a professional grain machinery manufacturer with independent R&D and production capacity. Every set of bucket lifting processing machinery undergoes strict factory testing, including load test, continuous operation test and safety inspection, passing ISO9001 quality certification.
1. Customized Scheme Service: We provide free workshop layout planning, production line design and equipment matching according to customers' output and factory conditions.
2. Global Project Experience: Our bucket lifting integrated production lines have been exported to more than 40 countries, covering Southeast Asia, Africa, Central Asia and Latin America, with mature overseas project installation cases.
3. Full‑Cycle After‑Sales: Provide overseas on‑site installation guidance, operator training, 1‑year whole‑machine warranty and lifelong spare parts supply service.

1. MOQ: 1 complete production line
2. Packaging: Steel frame fixed packaging + waterproof plastic film for core components; bulk parts packed in export wooden cases.
3. Shipping Terms: EXW, FOB, CIF, DAP are available; support full container load delivery for whole line equipment.
4. Lead Time: 20‑40 working days according to customized production scale.
5. Payment Terms: T/T (30% advance deposit + 70% balance before shipment) or irrevocable L/C at sight.
